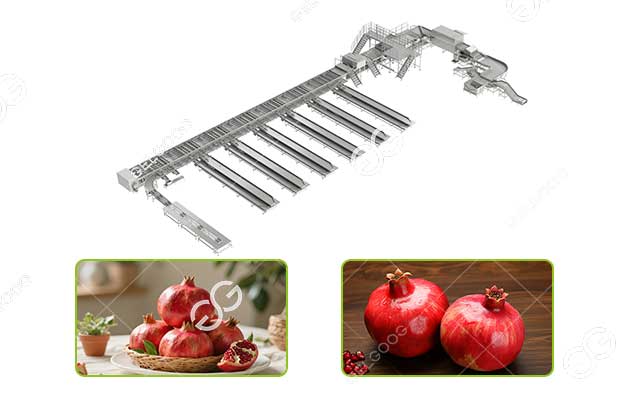

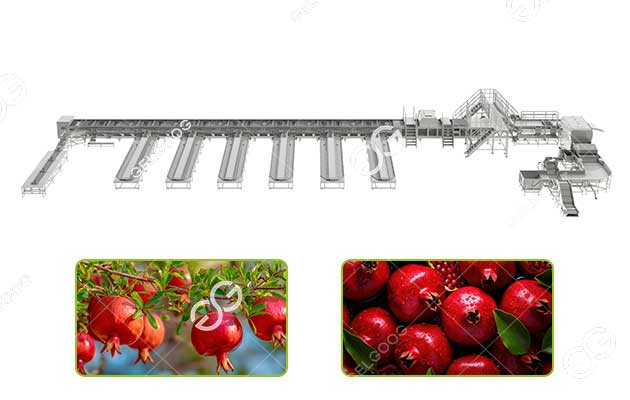

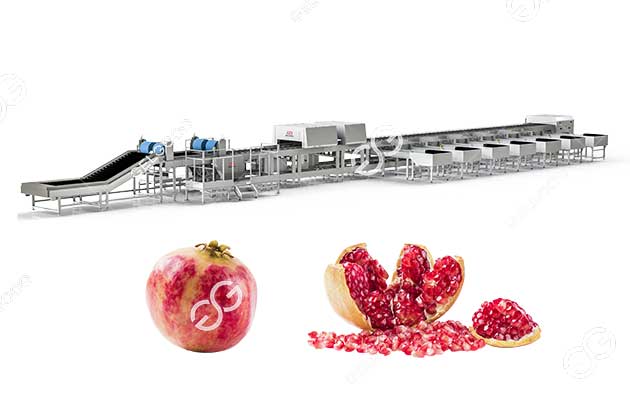

Gelgoog pomegranate fruit sorting machine can grade pomegranates based on multiple dimensions, including appearance, quality, sweetness, and ripeness. It can sort 1-10 tons of pomegranates per hour. Pomegranate grading machine is suitable for importers and exporters, fruit and vegetable supply chains, and others who have strict requirements for fruit specifications and quality.
Pomegranate Grading Machine Features
- High Quality: Gelgoog pomegranate grading machine can grade pomegranates based on internal quality (maturity, sweetness, and acidity). It achieves high-quality grading to meet the demands of high-end markets.
- High Precision: Fruit sorting machine refines pomegranate grading based on quality, appearance, and internal characteristics. This results in higher grading accuracy and greater standardization.
- Automation: The pomegranate fruit sorting machine uses computer-based grading. It requires no manual intervention, reducing labor costs. The grading results are stable and reliable.
- Continuity: To achieve high-efficiency production, our pomegranate sorting machine is equipped with a heat sink. The pomegranate grading machine can meet the continuous production needs of large factories. It can also be combined with fruit washing machines, pomegranate peeling machines, and pomegranate juicing machines to form a pomegranate juice processing line.
- Safety: The entire pomegranate sorting machine is made of food-grade stainless steel. It is easy to clean and maintain.
Pomegranate Grading Machine Work Pricinple
- Feeding: The pomegranate sorting machine can be equipped with a fruit-aligning roller device. This ensures that pomegranates enter the sorting line neatly, individually, and evenly.
- Weighing: Each pomegranate has an independent fruit tray. Each tray is equipped with two scales. The precise weight is calculated by a computer.
- Imaging: Multiple cameras photograph the pomegranates from all angles. The images are compared with appearance data stored in the computer. Pomegranates with blemishes, defects, or cracks are rejected.
- Spectral Detection: By illuminating the pomegranates, the machine can detect their ripeness, seed density, and sweetness/acidity levels.
- Grading: The pomegranate sorting machine transmits the weight, appearance, and internal quality information of each pomegranate to the computer. The computer quickly compares this information with grading standards to determine the pomegranate's grade.
- Output: Based on the grading results, the pomegranate fruit sorting machine guides the pomegranates to the corresponding grade channels.
Pomegranate Grading Machine Advantages
- High Capacity: The pomegranate fruit grading machine can process 1-10 tons of pomegranates per hour. It boasts high efficiency and low processing cost per unit time.
- Multi-purpose: The pomegranate sorting machine is compatible with apples, pears, pineapples, mangoes, and other fruits. This ensures high equipment utilization.
- Customizable: The pomegranate grading machine offers customizable grading channels. Gelgoog can customize a grading solution based on your factory layout and product requirements.
- Easy Operation: The pomegranate sorting machine is equipped with a PLC intelligent control system. Grading parameters, sensor configuration, and sorting speed can be freely adjusted.
- Upgradable: The pomegranate fruit sorting machine's computer can learn automatically. The more fruits it sorts, the larger the comparison database becomes. This leads to improved judgment and more accurate grading. Through learning, the pomegranate grading machine can adapt to pomegranates from different regions and varieties.
|
Serial Number |
Content |
Parameters |
Remarks |
|
1 |
Total motor power |
3.5KW |
/ |
|
1.1 |
Fruit tray conveyor motor power |
2.2KW |
Variable frequency motor |
|
1.2 |
Intermediate feeding motor power |
0.55KW |
Variable frequency motor |
|
1.3 |
Feeding conveyor belt motor power |
0.75KW |
Variable frequency motor |
|
2 |
Power supply |
380V/50Hz/Three-phase |
Customizable |
|
3 |
Conveying speed |
Adjustable |
Variable speed |
|
4 |
Overall dimensions(mm) |
9250*1250*1300 |
The length is determined by the number of hierarchical levels. |
|
5 |
Operating height (mm) |
1040 |
/ |
|
6 |
Receiving table dimensions (mm) |
3600*400*450 |
The length is determined by the number of hierarchical levels. |
