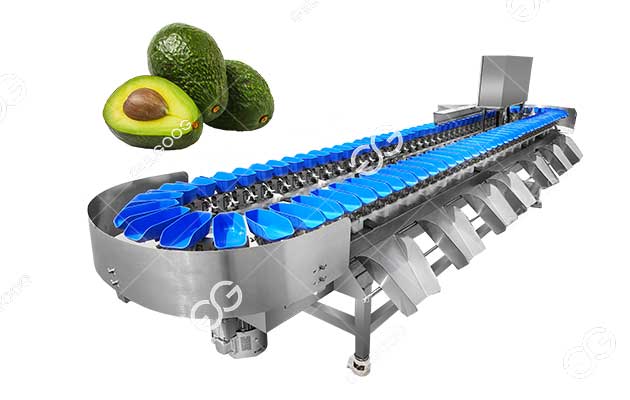

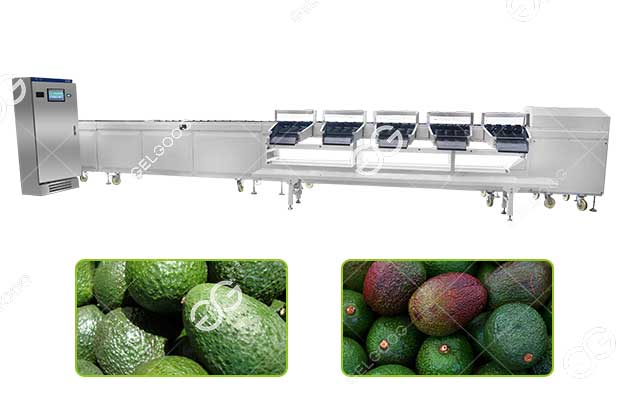

Avocado Weight Grading Machine Description
Standardized specifications are a crucial requirement for avocados in the high-end market. Traditional manual grading is inefficient and prone to error, making it difficult to guarantee consistent quality and size.
Gelgoog avocado weight grading machine has a capacity of 2-12 tons/hour and a grading error of ±2 grams. This avocado fruit grading machine helps businesses achieve continuous, efficient, and high-quality grading. It is suitable for large avocado processing plants, fruit and vegetable sorting centers, and export packaging workshops.
Avocado Sorting Machine Features
- High Precision: The avocado weight sorting machine has a measurement error of ±2 grams. This ensures highly consistent grading results, meeting the grading requirements of the high-end market.
- Individual Fruit Trays: Each avocado has its own individual tray. The avocados move smoothly along the conveyor chain, effectively preventing collisions between them.
- Non-destructive grading: The avocado grading machine's conveyor tracks, fruit trays, and receiving devices are all made of flexible materials. The grading process is precise and the force is controllable, achieving truly non-destructive grading.
- Modular design: The avocado fruit grading machine can be integrated with washing machines, waxing machines, drying machines, and packaging equipment to form a complete avocado processing production line. This achieves integrated processing from washing to grading and packaging.
- Intelligent control: The avocado grading machine is equipped with a PLC intelligent control system. Operators can adjust the equipment via a touchscreen. Flexibly adapts to the grading requirements of different markets and channels.
- High capacity: The avocado fruit grading machine can process 2-12 tons of fruit per hour. Meets the continuous production needs of large processing plants.
Avocado Weight Grading Machine Work Pricinple
Gelgoog avocado weight grading machine operates as a highly automated, intelligent closed-loop system. It integrates sensing technology, real-time calculations, and precise control:
- Feeding: Washed and waxed avocados are smoothly fed into the grading machine via a conveyor belt or automatic elevator. An automatic sorting device at the inlet ensures the avocados enter their respective individual trays in sequence, in a single row, and with proper spacing. This effectively prevents stacking, collisions, or missed detection.
- Weighing: Avocados are conveyed to weighing trays. Each tray is equipped with two sensors. Data from both sensors is transmitted to a central processor to calculate the weight of the avocado.
- Grading: The system compares the calculated weight with preset grading standards. The avocado is automatically graded.
- Output: The avocado fruit grading machine is equipped with a pneumatic pusher or a tilting fruit tray. As avocados pass through the discharge area, the machine gently pushes or unloads them into the appropriate collection trough or conveyor belt.
- Data Recording: The Gelgoog avocado sorting machine with an AI system can record grading data in real time. Businesses can export this data for production statistics and quality management. Gelgoog helps businesses achieve digital transformation.
Avocado Fruit Grading Machine Advantages
- Customization: Gelgoog avocado weight sorting machine can be customized to meet customer needs. Grading standards, grading speed, and track materials are all customizable. We provide customized solutions for each customer.
- Intelligent: The avocado fruit grading machine can be integrated with an AI system. The digital management system helps managers monitor factory operations. Grading quantity, speed, and quality can be viewed on a smart screen.
- Safety: All parts of the avocado sorting machine that come into contact with materials are made of food-grade materials. The machine also features a one-button emergency stop. Food safety and production safety are both guaranteed.
- Hygiene: The avocado weight grading machine uses a quick-release structure. There are no blind spots for cleaning, and daily maintenance is simple.
- Versatile: Gelgoog fruit sorting machine is also suitable for grading various small to medium-sized fruits such as mangoes, lemons, citrus fruits, kiwis, apples, and pineapples. Its versatility greatly improves equipment utilization and return on investment.
- Automation: Automated operation requires only 1-2 people to complete the entire process. Gelgoog's automatic fruit sorting line can replace a large number of manual laborers, reducing labor costs for businesses.
Technical Data
| Avocado Weight Grading Machine | ||
| Parameter Items | Technical Specifications | Remark |
| Sorting accuracy | ≤ ±2 g | Depending on the specific model and configuration |
| Number of levels | Levels 3-10 | Customizable |
| Capacity | 22,500-202,500 units/hour | Affected by fruit size and grading level |
| Applicable fruits | Avocado, mango, lemon, citrus, kiwi, apple, pineapple, etc. | Customizable |
| Control method | PLC + Touch Screen | Customizable |
| Equipment Material | Food-grade stainless steel + flexible materials | Customizable |
| Power requirements | 380V / 50Hz | Customizable |
